A900T Unmanned Helicopter Target Platform

A900T Unmanned Helicopter Target Platform

Alpha’s Unmanned Rotary Target Drone

The A900T is capable of simulating a manned-helicopter, providing a slow moving target that can hover and fly vertically.

The proliferation of UAVs and other aerial threats require armed forces to practice and hone their targeting skills. Effective training is required on advanced weapon systems, including Ground-Based Air Defence (GBAD), Surface to Air Missiles (SAM), and Air to Air (AA) systems.

The A900T is a versatile unmanned target system, a highly valuable operative resource.

With MTOW of less than 25kg, it is STANAG 4738 compliant and developed for a range of aerial target missions in challenging conditions.

4kg Payload Capacity
100cc 2-stroke fuel-powered boxer engine
150 W onboard generator
100Km radio range
4H endurance
Low & Slow flight mode
100Km/h max speed

Designed for Dependable Aerial Target Operations

A900T Specifications

Threat Simulation

Fully calibrated artillery detection.

Slow Flight & Hover

Accurate manned helicopter target simulation.

Encrypted Data

Secure transmission of telemetry & video.

Payload

Up to 4kg of payload capacity.

Autonomy

More than 4 hours of flight time.

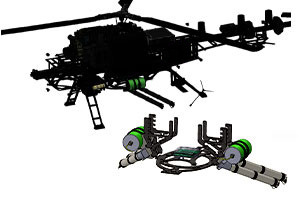

Available Target Payloads

Radar Enhancement

Alpha can fully integrate Radar Enhancement or Radar Cross-Section amplification sensors by means of both passive or active payloads.

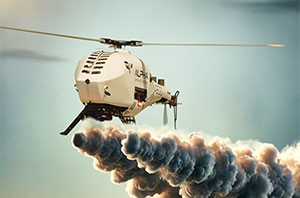

Infrared Enhancement System

Our team can integrate Infra-Red (IR) flares to provide the simulated heat signature of a full-size enemy helicopter.

Laser Reflecting Mirrors

Reflect laser signals back to the source for precise and accurate target simulation. Emulate real combat scenarios with accuracy and measurable performance.

Missed Distance Indicator Scoring

Either for counting small projectiles or serving as a scalar MDI for larger projectiles, our Aerial Targets can integrate your preferred MDI Scoring system.
